山东精工2.7V 1.0F圆柱超级电容器HESR2R7105Z-L中文规格书

1. 适用范围 / Scope

本产品规格书描述了山东精工能源科技有限公司（以下简称山东精工）生产的超级电容器的产品性能指标。

This product specification describes the characteristics of supercapacitor produced by Shandong Goldencell Energy Technology Co., Ltd.

2. 标准测试条件 / Standard Testing Condition

一般情况下，在标准大气压下，温度15~35 oC，相对湿度在25%~75%条件下进行测试，测试前样品在测试温度下放置12 h以上，本规格书的测试条件为标准大气压，温度为25±2 oC，相对湿度为60±15%。

All test and measurements shall be made under standard atmospheric conditions (Temperature: 15~35º, Relative humidity: 25%~75%) for testing. Before the measurements are made, the supercapacitor shall be store at the measuring temperature for a time sufficient to allow the entire supercapacitor to reach this temperature. All tests of the specification book were carried out under the following environmental conditions：

Temperature: 25±2 º Humidity:(60±15)%RH Air pressure：standard atmospheric pressure

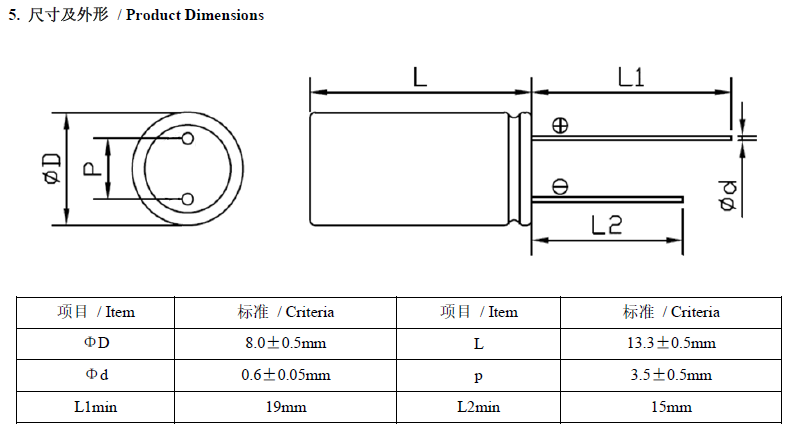

2.7V 1.0F圆柱超级电容器HESR2R7105Z-L尺寸及外形图示
